RAG Pipeline

The RAG (Retrieval-Augmented Generation) service provides end-to-end document ingestion, chunking, embedding, and semantic retrieval. It surfaces in the console as Data → Knowledge Engine.

Knowledge Engine

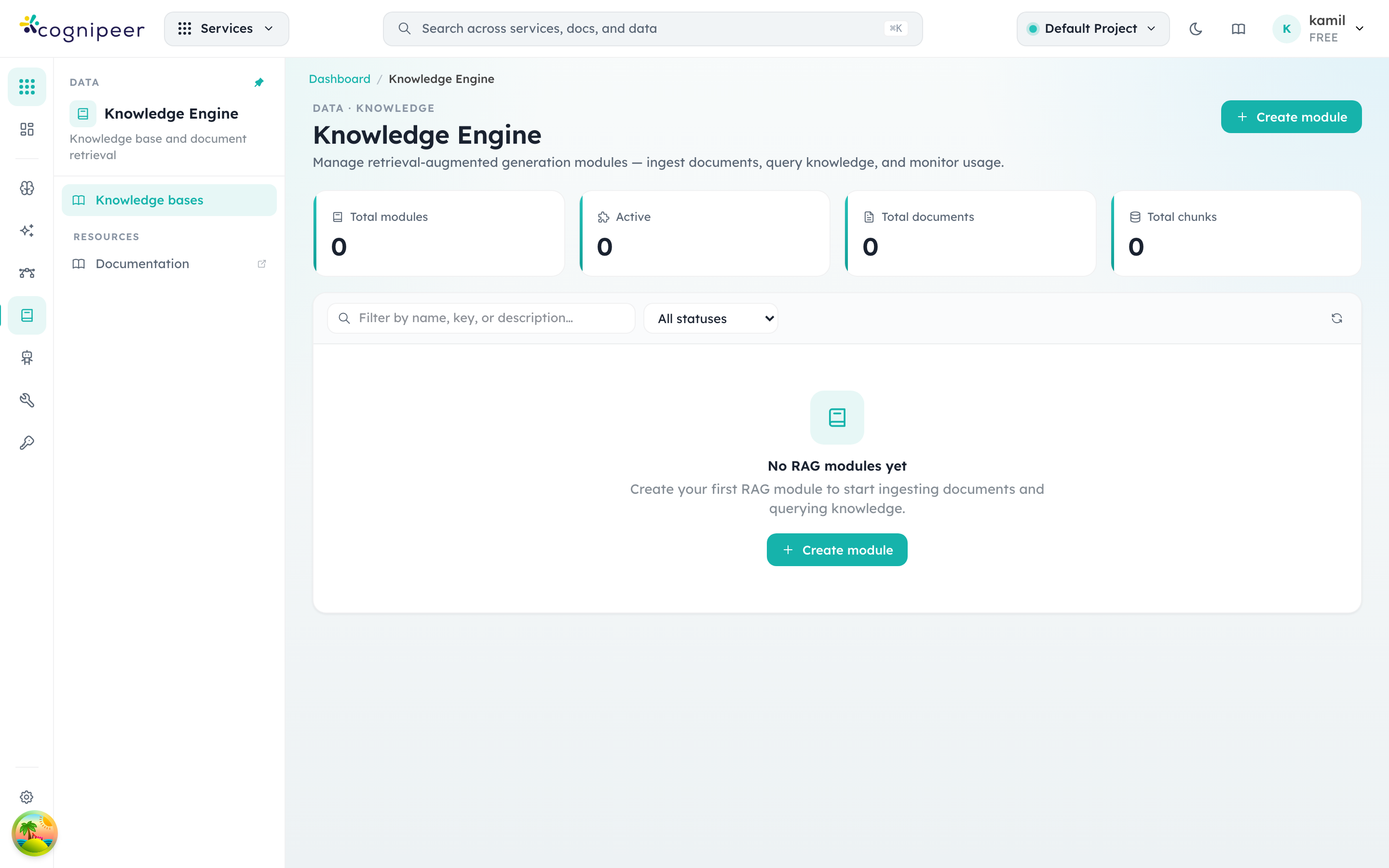

A RAG module is the configuration unit that ties a chunking strategy, an embedding model, and a vector index together. The Knowledge Engine screen lists every module configured for the active project, with counters for modules, documents indexed, and chunk count.

When the project is empty the screen shows the onboarding CTA — clicking Create module opens a multi-step form where you choose the source datasource, pick chunking parameters (size, overlap, splitter), select an embedding model from Model Hub, point the output at a vector index (see Vector Stores), and — optionally — attach a Reranker to re-order results before they reach the LLM.

When a reranker is attached, retrieval becomes a two-stage pipeline: the vector store returns top-K candidates and the reranker scores them down to the final top-N. This is the recommended way to plug Cohere Rerank, Jina, Voyage, or any cross-encoder onto an existing RAG module without changing the embedding model or vector store.

Architecture

Document → Chunk → Embed → Vector Store
                              ↓
Query   → Embed → Vector Search → (Reranker?) → Return Matches

Concepts

Concept	Description
RAG Module	Configuration container linking chunking strategy, embedding model, and vector index
Document	A text or file ingested into a module
Chunk	A segment of a document after splitting
Query Log	Audit record of retrieval queries

Service Functions

Function	Description
createRagModule()	Create module with chunk/embed config
updateRagModule()	Update module settings
deleteRagModule()	Delete module and associated data
getRagModule()	Get by key
listRagModules()	List modules for tenant
ingestDocument()	Text ingestion: chunk → embed → store
ingestFile()	File ingestion: convert → chunk → embed → store
queryRag()	Semantic retrieval
deleteRagDocument()	Delete document and its vectors
reingestDocument()	Re-chunk and re-embed existing document
listRagDocuments()	List documents in a module
listRagQueryLogs()	Query audit log

Module Configuration

{
  "name": "Support Knowledge Base",
  "key": "support-kb",
  "embeddingModelKey": "text-embedding-ada-002",
  "vectorProviderKey": "vectors-prod",
  "vectorIndexKey": "support-index",
  "rerankerKey": "support-rerank",
  "chunkConfig": {
    "strategy": "recursive",
    "chunkSize": 1000,
    "chunkOverlap": 200
  }
}

rerankerKey is optional. When present, the matching reranker (see Reranker) runs after vector search and before the response is returned.

Text Ingestion

POST /api/client/v1/rag/modules/:key/ingest
Authorization: Bearer <token>

{
  "fileName": "product-faq.txt",
  "content": "Long document text here...",
  "contentType": "text/plain",
  "metadata": { "source": "docs", "version": "2.0" }
}

Pipeline:

1. Split text into chunks using configured strategy
2. Generate embeddings for each chunk
3. Upsert vectors to the vector index
4. Store document and chunk metadata

File Ingestion

Submit a file for automatic processing:

1. File is converted to Markdown (using @cognipeer/to-markdown)
2. Markdown is chunked according to module config
3. Chunks are embedded and stored

Querying

POST /api/client/v1/rag/modules/:key/query
Authorization: Bearer <token>

{
  "query": "How do I reset my password?",
  "topK": 5,
  "filter": { "source": "docs" }
}

Pipeline:

1. Embed the query text
2. Perform vector similarity search
3. Return matching chunks with scores and metadata

Response:

{
  "matches": [
    {
      "content": "To reset your password, navigate to...",
      "score": 0.92,
      "metadata": { "source": "docs", "documentTitle": "Product FAQ" }
    }
  ]
}

Re-ingestion

When a document is updated or chunking config changes, use reingestDocument() to:

1. Remove existing vectors for the document
2. Re-chunk with current settings
3. Re-embed and store new vectors

Dependencies

The RAG pipeline integrates several gateway services:

• Inference Service — For generating embeddings
• Vector Service — For storing and querying vectors
• File Service — For file conversion (optional)
